GR310 – Forklift Rated Pedestrian Protection
Meets OSHA Requirement 1910.176(a)
The GR310 Forklift Rated Guardrail is a powerful barrier system designed to protect pedestrians in high-traffic industrial environments. Engineered and tested in-house to comply with ANSI MH31.2-201 at 3 mph with a 10,000 lb. forklift and also complies with OSHA 1910.176(a) requirements. This heavy-duty safety solution minimizes the risk of collisions between forklifts and employees, providing a strong line of defense in warehouses, distribution centers, and manufacturing facilities. Whether you’re safeguarding walkways, equipment zones, or critical infrastructure, the GR310 delivers unmatched durability and protection.
The GR310 isn’t just about protection, it’s about smart traffic management. By controlling how forklifts and foot traffic move within your facility, this guardrail system helps reduce blind spots and dangerous intersections. It creates defined pathways that keep workers safe and operations efficient. With features like a modular design and forklift impact resistance, the GR310 helps prevent damage to racking, inventory, and most importantly, your people.
Key Features:
1. Forklift Rated Impact Protection
2. OSHA Compliant
Meets OSHA 1910.176(a) standards for material handling safety, helping facilities stay compliant.
3. Heavy-Duty Steel Construction
Built from industrial-grade materials for long-term durability in demanding environments.
4. Enhanced Pedestrian Safety
Creates defined walkways to separate people from forklift traffic and reduce collision risk.
5. Modular and Scalable Design
Easily configurable to fit any facility layout, allowing for quick expansion or reconfiguration.
6. Traffic Flow Management
Strategically guides both pedestrian and forklift traffic to minimize conflict points and improve workflow.
45 Degree Mount
2
Gate Mount
Swing Gate - GR310
3ft - 5ft Swing gates
6ft - 10ft Swing gates
Drop-In Pockets - GR310
The GR310 Forklift Rated Protective Guardrail offers optional Drop-In Pockets on the left and right, allowing for easy removal of the guardrails to create openings. This feature provides convenient access for both forklifts and pedestrians.

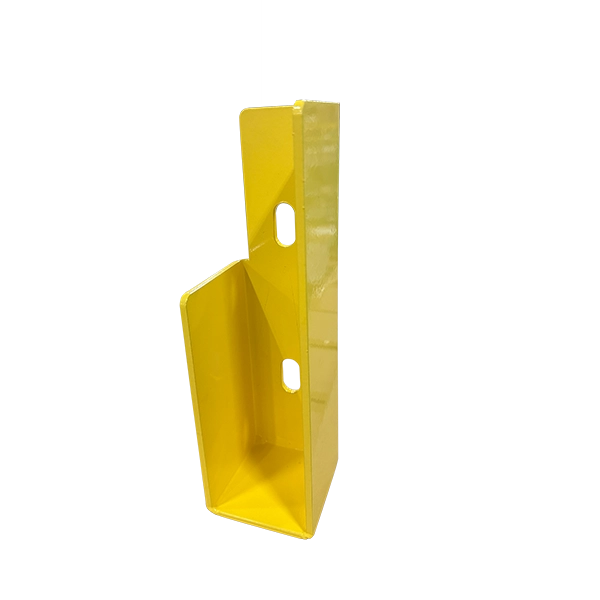

Left Pocket
Right Pocket
Parts and Specification
Specification
| GR310 Specifications | |
| Bollard | 4”x4” Post with 1/4” wall mounted to 1/2” plate |
|---|---|
| Hardware | Provided with bollard |
| Number of Ribs | 2 |
| Color | Powder coated yellow |
| Mounting | Four 3/4” concrete anchors |
| Top Panel Height | 42” |
| Bottom Panel Height | 15” |
| Panel | 1/8” |
| Available Lengths | 1 foot increments from 2ft to 10ft |
| Tested Compliance | Complies with ANSI MH31.2-201 at 3mph with 10,000lb fork truck |
Parts
| Part No. | Description |
|---|---|
| 432-001-001 | Bollard assembly |
| 432-011-001 | Corner bollard assembly |
| 432-002-001 | Two rib guardrail safety yellow – 2ft |
| 432-003-001 | Two rib guardrail safety yellow – 3ft |
| 432-004-001 | Two rib guardrail safety yellow – 4ft |
| 432-005-001 | Two rib guardrail safety yellow – 5ft |
| 432-006-001 | Two rib guardrail safety yellow – 6ft |
| 432-007-001 | Two rib guardrail safety yellow – 7ft |
| 432-008-001 | Two rib guardrail safety yellow – 8ft |
| 432-009-001 | Two rib guardrail safety yellow – 9ft |
| 432-010-001 | Two rib guardrail safety yellow – 10ft |
| 432-012-001 | Swing gate mount safety yellow |
| 432-013-001 | Bollard assembly single height |
| 432-014-001 | Corner bollard assembly single height |
| 432-015-001 | Easy Fit self-closing gate |
| 432-129-001 | 45-degree bracket (kit contains 1 mount and hardware) |
| 432-125-001 | Drop in pockets (kit contains 1 Left and 1 Right) |
| 432-023-001 | Heavy Duty Swing Gate - 3ft |
| 432-024-001 | Heavy Duty Swing Gate - 4ft |
| 432-025-001 | Heavy Duty Swing Gate - 5ft |
| 432-026-001 | Heavy Duty Swing Gate - 6ft |
| 432-027-001 | Heavy Duty Swing Gate - 7ft |
| 432-028-001 | Heavy Duty Swing Gate - 8ft |
| 432-029-001 | Heavy Duty Swing Gate - 9ft |
| 432-030-001 | Heavy Duty Swing Gate - 10ft |
